Posted on by Evan Gough

Pluto has Snowcapped Mountains, But Why?

We can thank NASA’s New Horizons spacecraft for opening our eyes up to Pluto’s complexity. On July 14th, 2015, the spacecraft came within 12,500 km (7,800 mi) of the dwarf planet. During the flyby, New Horizons was able to characterize Pluto’s atmosphere and its surface.

Among the things New Horizons saw was a region of snowcapped mountains.

Here on Earth, the higher you go, the colder it gets, which explains our snowcapped mountains. But on Pluto, there’s a temperature inversion, meaning that it’s the reverse of Earth: the higher you go, the warmer it gets. It’s because of solar radiation. The average atmospheric temperature at altitude is tens of degrees higher than its surface.

So why is there frost?

This area is south of Pluto's dark equatorial band informally named Cthulhu Regio, and southwest of the vast nitrogen ice plains informally named Sputnik Planitia. North is at the top; in the western portion of the image, a chain of bright mountains extends north into Cthulhu Regio. New Horizons compositional data indicate the bright snowcap material covering these mountains isn't water, but atmospheric methane that has condensed as frost onto these surfaces at high elevation. Credit: NASA/Johns Hopkins University Applied Physics Laboratory/Southwest Research Institute.
This area is south of Pluto’s dark equatorial band informally named Cthulhu Regio, and southwest of the vast nitrogen ice plains informally named Sputnik Planitia. North is at the top; in the western portion of the image, a chain of bright mountains extends north into Cthulhu Regio. New Horizons compositional data indicate the bright snowcap material covering these mountains isn’t water, but atmospheric methane that has condensed as frost onto these surfaces at high elevation. Credit: NASA/Johns Hopkins University Applied Physics Laboratory/Southwest Research Institute.

A team of researchers, led by members from the CNRS (Centre National de la Recherche Scientifique, or French National Center for Scientific Research), tackled the question in a new study. The title is “Equatorial mountains on Pluto are covered by methane frosts resulting from a unique atmospheric process.” The lead author is Tanguy Bertand, who is currently a NASA Postdoctoral Fellow at NASA Ames Research Center. The study is published in Nature Communications.

New Horizons found snow on Pigafetta Montes and Elcano Montes, located in Pluto’s Cthulhu Macula region on the planet’s equator. Pluto’s snow is not like Earth’s snow; it’s frozen methane, not frozen water. But Pluto’s a frigid world with a tenuous atmosphere, and there’s a scant amount of methane in its very thin atmosphere. How did it form as snow on the tops of mountains?

Pluto’s surface sports a remarkable range of landforms that have their own distinct colors, telling a complex geological and climatological story. Credit: Courtesy NASA / JHUAPL / SwRI Table of Contents page 2015 Annual Report Division: (15)
Pluto’s surface sports a remarkable range of landforms that have their own distinct colors, telling a complex geological and climatological story. Credit: Courtesy NASA / JHUAPL / SwRI Table of Contents page 2015 Annual Report Division: (15)

On Earth, temperature decreases with altitude due to adiabatic cooling. As air moves upward along the slope of a mountain, it expands, which leads to cooling. The reverse is true as air descends: the air gets warmer. When moist air is rising, and when it cools enough, it condenses and falls as snow. It’s a well-understood phenomenon here on Earth, but it can’t explain Pluto’s snow.

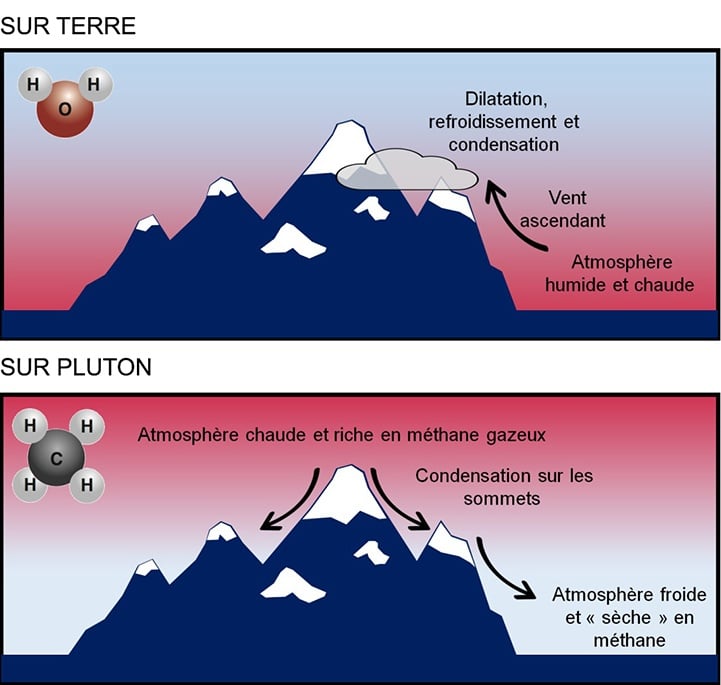

On Earth, temperature decreases with altitude, by about 1 degree Celsius every 100 meters. On Pluto, it's warmer at higher altitudes. Yet on Pluto, there's still methane frost or snow at high altitudes. Image Credit: Tanguy Bertand et al,. 2020.
On Earth, temperature decreases with altitude, by about 1 degree Celsius every 100 meters. On Pluto, it’s warmer at higher altitudes. Yet on Pluto, there’s still methane frost or snow at high altitudes. Image Credit: Tanguy Bertand et al,. 2020.

The team used a climate model to find out how the methane snow came to fall on the mountains. Pluto’s thin atmosphere is mostly nitrogen, with trace amounts of methane and carbon monoxide. With only trace amounts of methane, it’s hard to account for all that snow.

By working with the climate model, the researchers determined that the dynamics of Pluto’s atmosphere concentrates the methane at higher altitudes. Only at the tops of mountains is there enough methane to form snow. At lower altitudes, there simply isn’t enough methane.

Since Pluto doesn’t have a thick, insulating atmosphere like Earth, the dwarf planet is warmer at higher altitudes due to solar radiation, as the heat is absorbed by the methane in the atmosphere. This is in effect for the first few kilometers in altitude. That process of heat absorption by methane doesn’t take place in areas where there’s nitrogen ice on the surface, because it can sublimate and cool the first few kilometers of altitude in the atmosphere.

A) New Horizons map of the southeast Cthulhu region on Pluto, located in the equatorial regions west of Sputnik Planitia. The yellow box indicates the boundaries of the area seen in detail in (b). B) Detail of the CH4 frost-capped ridges of Pigafetta and Elcano Montes within Cthulhu Macula (148.2°E, 10.1°S), seen in an enhanced Ralph/MVIC colour image (680?m/pixel, cylindrical projection). C) Satellite view of water ice-capped mountain chains in the Alps.

Pluto’s atmosphere is too thin to heat the planet’s surface, so when there’s no frozen nitrogen on the surface, there’s a “local radiative balance.” That balance is independent of altitude and it’s colder than the atmosphere above it.

As a consequence, the air near the surface is cooled, becomes denser, and wants to flow downslope all the time. Climate simulations by other researchers show that this mechanism is present all over Pluto, and at all times of the day. The result is that Pluto is dominated by downslope winds. That’s why its snow formation is so puzzling. It’s completely different than Earth, where air cools as it rises, and deposits its moisture as snow on mountains.

“It is remarkable that two phenomena and two materials that are so dissimilar could produce the same landscape when seen at similar resolution.”

From “Equatorial mountains on Pluto are covered by methane frosts resulting from a unique atmospheric process”

The team of researchers found that Pluto’s atmosphere circulates in such a way that methane is concentrated at higher altitudes. That circulation is seasonal, and driven by sublimation on the surface. The authors refer to this as “sublimation-induced circulation cells.” As the methane becomes more concentrated, it reaches a saturation point and falls as snow on the surface of the mountains.

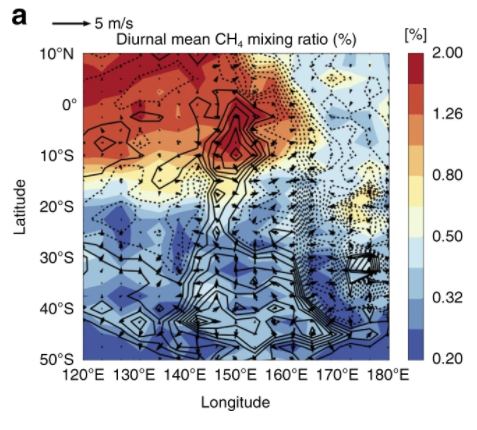

This is an image from the simulation run by the team in their study. It shows the diurnal mean mixing ration of methane. The black lines represent surface winds, which work to concentrate the methane. As the bar on the right show, red represents higher concentrations of methane over higher alititudes, where it can form as frost on the mountains. Image Credit: Bertand et al, 2020.
This is an image from the simulation run by the team in their study. It shows the diurnal mean mixing ration of methane. The black lines represent surface winds, which work to concentrate the methane. As the bar on the right show, red represents higher concentrations of methane over higher altitudes, forming as frost on the mountains. Image Credit: Bertand et al., 2020.

There’s a feedback loop involved too. As methane snow forms on the mountains, it increases the albedo, leading to more cooling. With more cooling comes more methane snow.

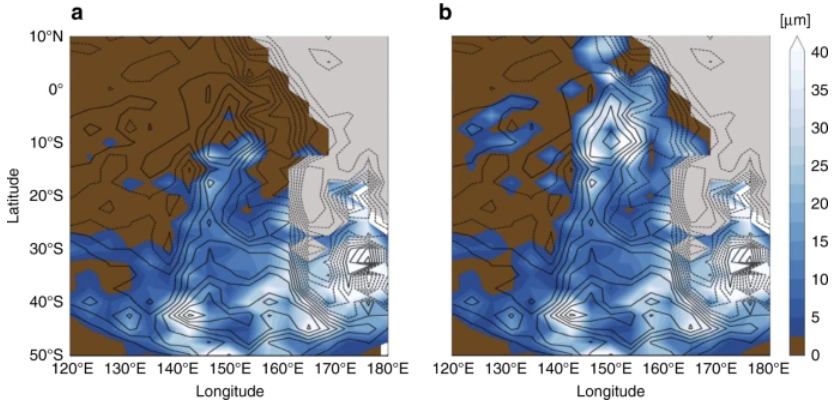

These images from the study show methane snow accumulations in the area highlighted in yellow in the previous image. Brown is volatile-free surface areas, and grey is the frozen nitrogen ice sheet in Sputnik Planitia. From blue to white shows increasing accumulations of methane ice. The image on the right is the same simulation but with increasing albedo affect. The images are from a climate simulation that the researchers ran. Contour lines are 300m. Image Credit: Bertand et al., 2020.
These images from the study show methane snow accumulations in the area highlighted in yellow in the previous image. Brown is volatile-free surface areas, and grey is the frozen nitrogen ice sheet in Sputnik Planitia. From blue to white shows increasing accumulations of methane ice. The image on the right is the same simulation but with increasing albedo affect. The images are from a climate simulation that the researchers ran. Contour lines are 300m. Image Credit: Bertand et al., 2020.

“Overall, the formation of CH4 frost on top of Pluto’s mountains appears to be driven by a process completely different from the one forming snow-capped mountains on the Earth, according to our model,” the team writes in the conclusion of their paper. “It is remarkable that two phenomena and two materials that are so dissimilar could produce the same landscape when seen at similar resolution.”

This is just one more example of Pluto’s complexity. Prior to the New Horizons flyby of the dwarf planet, we had no idea that the surface, atmosphere, and climate were so complex. Scientists are still working with all the data from the mission, so who knows what is still waiting to be discovered.

After its closest approach to Pluto, New Horizons looked back toward the planet and captured this near-sunset view of its rugged, icy mountains and flat ice plains. The smooth expanse of Sputnik Planitia (right) is flanked to the west (left) by rugged mountains up to 11,000 feet (3,500 m) high. Some want to send another mission to Pluto, this time an orbiter. Image Credit: NASA/JHUAPL/SwRI
After its closest approach to Pluto, New Horizons looked back toward the planet and captured this near-sunset view of its rugged, icy mountains and flat ice plains. The smooth expanse of Sputnik Planitia (right) is flanked to the west (left) by rugged mountains up to 11,000 feet (3,500 m) high. Some want to send another mission to Pluto, this time an orbiter. Image Credit: NASA/JHUAPL/SwRI

There’s also some talk of another mission. New Horizons only performed a flyby of the ice dwarf, so its best data is restricted to one side of the distant world. Planetary scientist Alan Stern was the Principal Investigator for the New Horizons mission and he thinks an orbiter mission to Pluto is the next step. A lander could also be part of that mission.
