Space exploration requires all kinds of interesting solutions to complex problems. There is a branch of NASA designed to support the innovators trying to solve those problems – the Institute for Advanced Concepts (NIAC). They occasionally hand out grant funding to worthy projects trying to tackle some of these challenges. The results from one of those grants are now in, and they are intriguing. A team from Masten Space Systems, supported by Honeybee Robotics, Texas A&M, and the University of Central Florida, came up with a way a lunar lander could deposit its own landing pad on the way down.

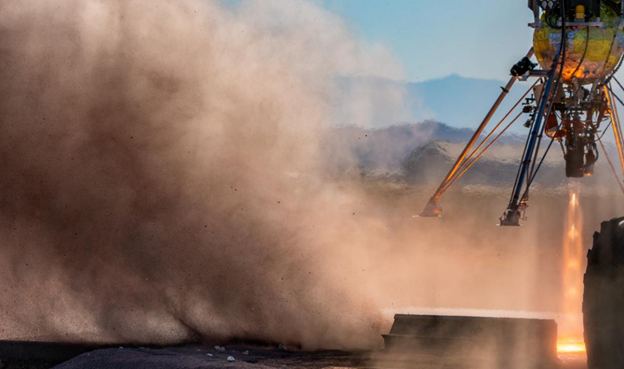

Lunar dust poses a significant problem to any powered landers on the surface. The retrograde rockets needed to land on the moon’s surface softly will also kick dust and rock up into the air, potentially damaging the lander itself or any surrounding human infrastructure. A landing pad would lessen the impact of this dust and provide a more stable place for the landing itself.
Credit – Masten Space Systems
But constructing such a landing pad the traditional way would be prohibitively expensive. Current estimates put the cost of building a lunar landing pad using traditional materials at approximately $120 million. Any such mission also suffers from a chicken and egg problem. How to get the materials to build the landing pad land in place if there is no landing pad, to begin with?

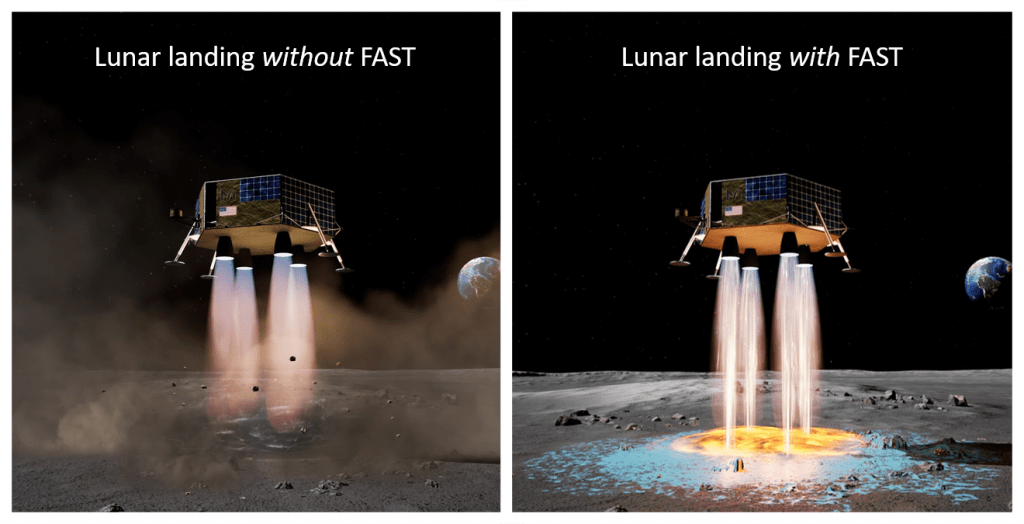

The technology Masten has developed is an ingenious solution to both of those problems. Depositing a landing pad while descending would allow spacefarers to have a landing pad in place before a spacecraft ever touches down there. It would also cost much less to install as all that is needed is a relatively simple additive to the rocket exhaust already being blasted into the surface.
Credit – Master Space Systems

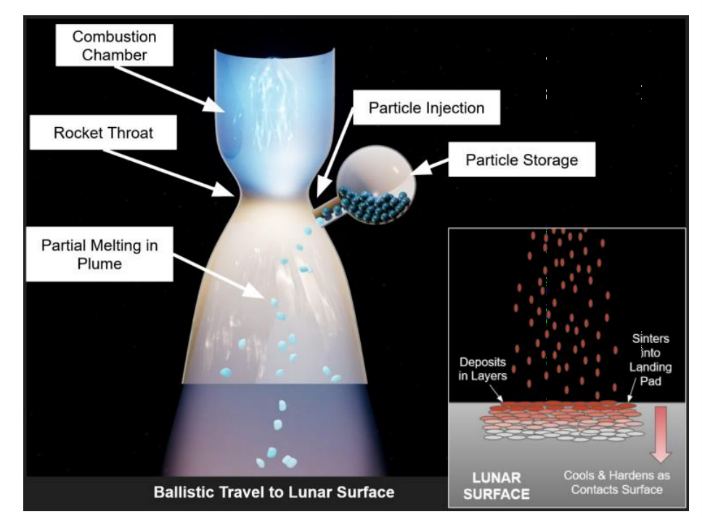

Masten’s general idea is easy enough to understand. Adding solid pellets into the rocket exhaust would allow that material to partially liquefy and deposit onto the exhaust’s blast zone, potentially hardening it to a point where dust is no longer a factor as it is encapsulated in a hard external shell. Masten believed it could find the right material to add to rocket exhaust to do exactly that.
Success or failure would come down to the physical properties of the additive pellets. Any additive with too much heat tolerance wouldn’t melt appropriately in the rocket exhaust, essentially bombarding the surface with tiny bullets. On the other hand, any additive with too little heat tolerance could be completely melted by the rocket exhaust and vaporized into a useless cloud.
Credit – Masten Space Systems
To find the perfect balance, Masten developed a two-tiered system, with relatively large (.5mm) alumina particles used to create a base layer of 1mm of melted lunar surface combined with alumina. Then, as the lander got closer to the base layer, the additive would switch to a .024mm alumina particle, which would deposit at 650 m/s onto the base layer and create a 6m diameter landing pad that would cool in 2.5 seconds.
That all sounds like a pretty impressive idea, but it is still early days. Like many federal grants, the NIAC grant focused on developing this depositable landing pad idea takes a phased approach. Most of the Phase I, which has just been completed, focused on proving the idea is feasible, which Masten believes it is.
Credit – Masten Space Systems
Feasible is not the same as functional, but that is precisely what NIAC grants are supposed to support – wild ideas that might just fundamentally change some aspect of space exploration. If Masten is correct and the approach is possible and can be scaled up, landing pads might be seen cropping up all over the lunar surface. And eventually all over Mars as well.
Learn More:
MSS – Mitigating Lunar Dust: Masten Completes FAST Landing Pad Study
NASA – Instant Landing Pads for Artemis Lunar Missions
Lead Image:
Artist depiction of a lunar lander utilizes the FAST landing pad deposition technology.
Credit – Masten Space Systems
